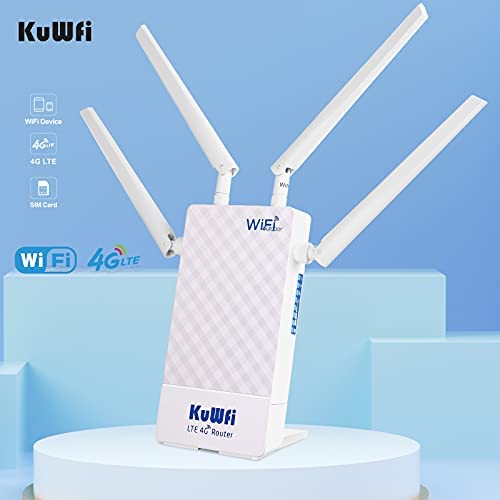

KuWFi 4G LTE CPE Router with SIM Card Slot Outdoor Waterproof 150Mbps CAT4 Routers IP Camera Outside WiFi Work with Optus Telstra Virgin Mobile

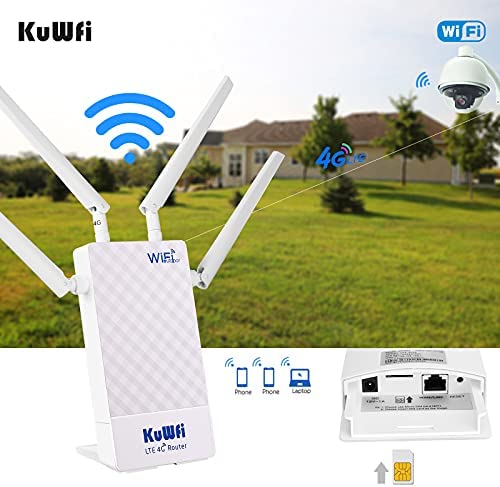

About this item 【What KuWFi CPF905-CF5 is】 It is a outdoor 4G LTE CPE router designed for WIFI users to get access to internet via UMTS/HSPA/LTE. It is used to supply internet access to indoor &outdoor WiFi coverage and monitor camera project(it can convert 4G to WiFi hotspot)use for indoor or outdoor without broadband place, let you enjoy smooth internet while working from home/working online /telecommuting. can be connected to 10 devices at the same time.Perfect as a Christmas gift 【 Main feature Performance 】 KuWFi CPF905-CF5 LTE CAT4 up to 150Mbps IP65 Waterproof and the wireless transmission speed rate is 300mbps. Come with 48V POE adapter PowerSupply work with IP camera and POE switch . including 1* WAN/LAN port and one sim card slot,Ethernet mode :dynamic/PPPOE/LAN. It is suitable for installation in home/office/factory/warehouse/garden/ parking lot . Dual high gained external antenna two is 4G antenna and two is WiFi antenna (support remove and change other antenna) 【HOW To Use 】 Please insert SIM card then power on the router, Even if your SIM card is compatible with the product, it is not necessarily plug and play, you may need to disable the PIN code of the SIM card and modify the APN .Enter the router IP address: 192.168.199.1 and Click Network—APN—Enable. Modify APN. Make sure the SIM card is activate, Not support roaming service and Virtual SIM Card and IoT SIM Card 【Frequency band】 4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ) 4G LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ) 3G WCDMA:B1/B8(2100/900MHZ) 2G GSM:B3/B8(1800/900MHZ) EVDO BC0 Working in all of EU ,Asia ,Africa,Oceania 【Update function】 Support Port Filtering MAC/IP/Port Filtering Settings Port Mapping DMZ Settings,，work with 48V POE switch and POE Camera Please you confirm whether your SIM card frequency band is compatible with it before buying a router. Unlocked mean work with any sim card but the sim card network Frequency band should be support the router network band
$94.00
Product Description
|
|
|
|
|---|---|---|
|
4G LTE CategoryUp to 150 Mbps Download / 50 Mbps Upload 2.4GHz WiFi SpeedUp to 300 Mbps on 2.4GHz Antennas4 x 5 dBi Fixed Antennas SIM SlotMicro SIM (also include with a SIM adapter which could turn Nano SIM to a Micro SIM) Cellular Frequency Band4G-LTE- VPN ClientsOpenVPN、WireGuard、PPTP、L2TP DNS Configure CloudFlare 、NextDNS、Google |
IP 65 WATERPROOF – IP 65 waterproof case – Anti-UV – Corrosion resistant – Suitable for outdoor installation Operating Environment – Working temperature： -20° to 75°C – Working height：Current tested max height 3000m (10,000 inches) |
Ports – SIM：2FF SIM(SIM card is NOT including) – USB：USB TYPE A (5V 1A IN) – DC：48V POE Adapter – RJ45：1* WAN/LAN |
|
|
|
|
|---|---|---|
|

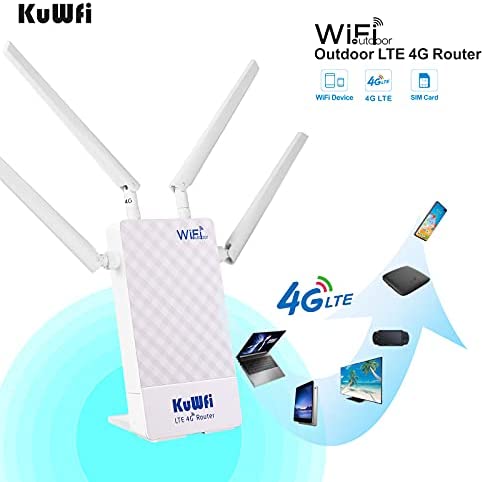

Internet connection sharing, up to 10 users can access the WiFi network at the same time. Able to connect with Tablet ,Laptop, notebook, IP cameras and different types of WI-FI devices. |
Features: – HW_VER：CPF905－CF5 POE version – MTK Chipset：MT6735WM – Wi-Fi Chipset：MT6625L – RAM/ROM：4GByte EMMC+512MByte DDR2 – Wi-Fi：IEEE 802.11b/g/n – Wi-Fi Transfer rate：UP to 150Mbps – Encryption：Wi-Fi Protected Access (WPA/WPA2)2 – Soft SIM：esim or softsim |
How to Set It Up
Please insert the SIM card first, and then connect the product to the power supply.
The next step is to connect the SSID, the SSID is 4G-CPE_xxxx, and The password for the SSID is 1234567890.
For more setting information about the router:
Please open your browser, enter the router’s IP address “ 192.168.199.1”, and click Enter. Then please enter admin in the password, and click Enter.
The following is how to set the APN:
You need to click on “APN” in “network settings” and then click on “add new”.
Please fill in “Profile Name”, “APN”, “mcc” and “mnc” and click “Apply”.
The following is how to change the IP address:
You need to click disconnect next to the network connection option on the homepage. Then click router setting to modify and Apply.
Specification: KuWFi 4G LTE CPE Router with SIM Card Slot Outdoor Waterproof 150Mbps CAT4 Routers IP Camera Outside WiFi Work with Optus Telstra Virgin Mobile
|
